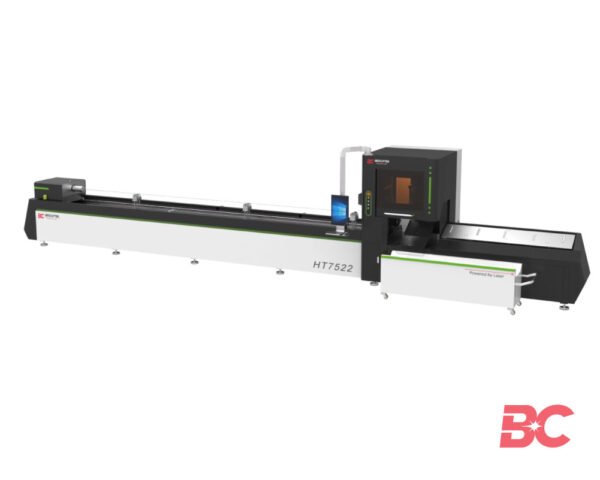

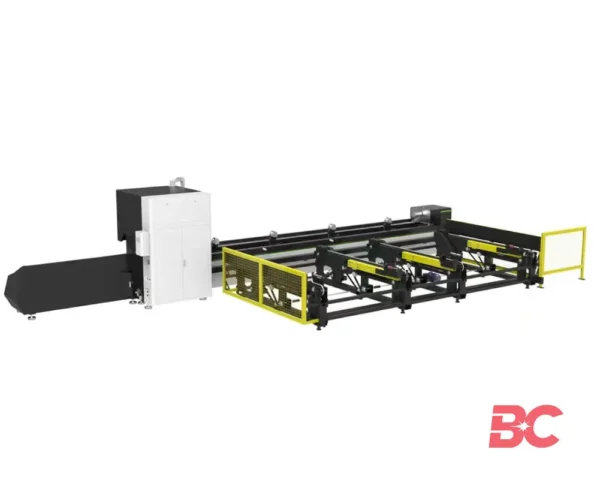

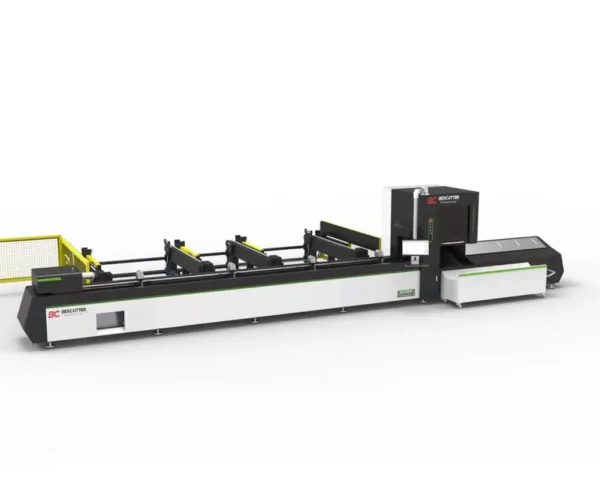

TUBE MASTER SERIES

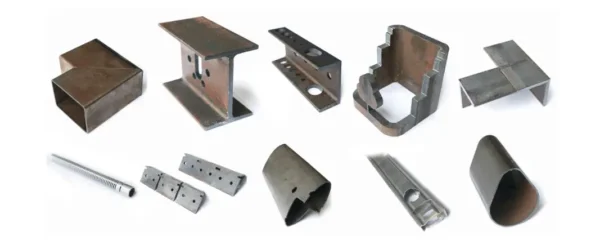

ThisĀ is a high-performance fiber laser cutting system engineered for precision and efficiency in metal tube processing. With advanced capabilities, it is ideal for industries such asĀ automotive, aerospace, household appliances, and precision manufacturing. Its pneumatic auto-centering chuck ensures precise clamping for round, square, oval, flat, and triangular tubes, while itsĀ high-speed positioning systemĀ minimizes production time.
Power that Fits Your Needs
TheĀ Tube MasterĀ is available withĀ 1,500W ā 6,000WĀ Ā laser power, providing flexibility for a variety of material thicknesses and cutting demands.
Key Features:
- High-precision chassis: Rigid structure with vibration elimination for stable performance.
- Advanced Raytools Laser Cutting Head: Auto-focus functionality ensures optimal cut quality..
- High-speed operation: Up to 100 m/min positioning speed for enhanced productivity.
- Infinite rotation A & B Axis: Allows flexible and complex tube cutting.
- Automated cutting with TubesT software: Smart nesting software for efficient tube cutting path planning.
MACHINE SPECS
| Specification Item | Details |
|---|---|
| Tube range (length): | 295″ (7500 mm) |
| Tube diameter: | Standard: 0.78″- 8.66″ (20-220 mm) |
| Optional: 0.39″- 4.7″ (10-120 mm) | Y-axis |
| X-axis: | 295″ (7500 mm) |
| Y-axis: | 7.87″ (200 mm) |
| A, B-axis: | Infinite Rotation |
| Loading Capacity: | 220 Chuck: 342 lbs; 120 Chuck: 154 lbs. |
| X, Y-axis positioning accuracy: | Ā±0.03 mm/1000 mm |
| X, Y-axis re-positioning accuracy: | Ā±0.05 mm |
| A, B-axis positioning accuracy: | Ā±30Ā° |
| A, B-axis re-positioning accuracy: | Ā±10Ā° |
| X, Y-axis max positioning speed: | 100 m/min |
| Max positioning speed: | 100 rpm |
| Laser resonator: | BC Power / MAX |
| Optional laser wattage: | From 1,500W to 4,000W |
| Laser head: | Raytools |
| Machine Weight: | 14,330 lbs (6500 kg) |
| Dimensions: | 472″ x 87″ x 91″ (12000 x 2200 x 2300 mm) |
āļø “All Inclusive” Package
We transport, install and train in detail without limit of operators, all in your factory and with your projects.
āļø Warranty Included
Our unlimited warranty is top notch
āļø On site and Online Support
We provide online support and if you require an in-person visit, we travel from our nearest office.
