Prima Power turret punch press uses numerically controlled, servo-electric axes, which provides outstanding energy efficiency, low maintenance requirement and a high speed of operation. The cornerstones of its productivity include large tool capacity, the wide range of tools available and easy and fast setup change. Forming and other auxiliary work stages, and ease of use are further factors reducing the manufacturing cost per component thus making the turret punch press a productive and competitive manufacturing solution.
Prima Power’s ECOPUNCH® concept is an astonishing money saver in terms of energy consumption. Compared to traditional method Prima Power can produce more parts at same energy.
Machine Features
23 ton and 30 ton punching force as standard, depending on selected performance.
20 station turret with 16 normal tool holders (A, B, C, D) and four index tool holders (2 x Bi, 1 x Ci, 1 x Di). Max. 384 tools in the turret for active use. Turret is compatible with Amada® tools.
Two sheet clamps with central locking and foot pedal.
Optional third clamp available for better grip and support for larger sheets.
LARGE TOOLING CAPACITY
The large number of tools with Prima Power punching machines
results from a set of technical features which is not
available from any other manufacturer:
• Two turret construction alternatives: 16 and 20 stations
• Multi-Tools®
• A vast variety of special tools
• Rotating Auto-Index system
• Intelligent ram
Modular and easy to automate.
Technical Data

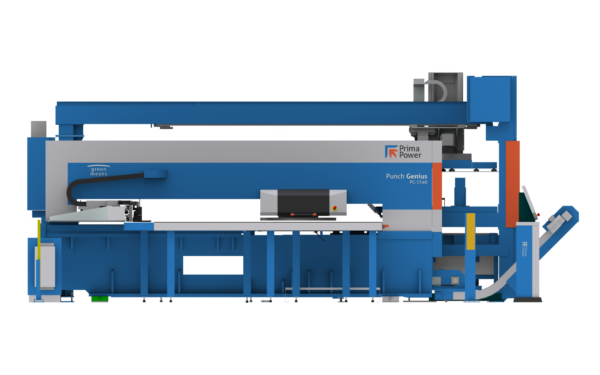

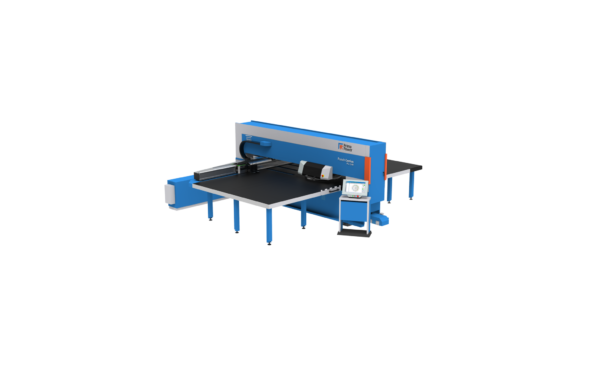

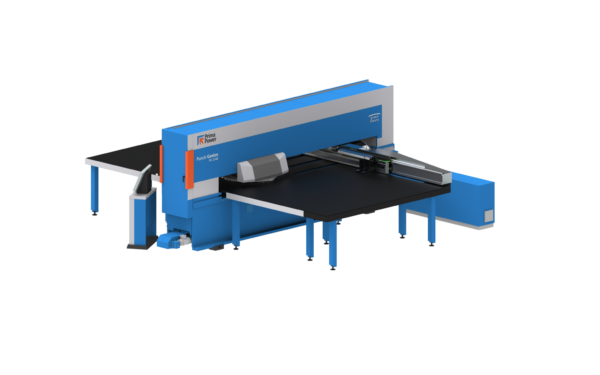

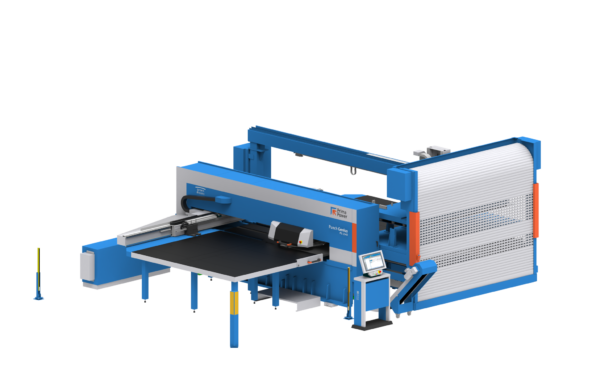

Models: PG1530 and PG1540
- Max sheet size
PG1530: 3,000 mm x 1,500 mm
PG1540: 4,300 mm x 1,500 mm - Max. sheet thickness: 8 mm
- Customized turret
Max. tools in turret: 400
Max. index tools in turret: 384
Two performance levels: Pure and Dynamic
The new Genius series has models on two complementary performance levels. Pure meets all the targets set for an attractively priced, yet efficient production machine; Dynamic offers the best productivity and performance in the market. Both models come with the latest features and can be equipped with the whole range of options.
- Ram force, max.
PG Pure: 230 kN (25 US Tons)
PG Dynamic: 300 kN (33 US Tons) - Hit speed, max.
PG Pure: 700 hpm
PG Dynamic: 1,000 hpm - Positioning speed
PG Pure / X25: 108 m/min
PG Pure / X30: 127 m/min
PG Dynamic / X25: 127 m/min
PG Dynamic / X30: 150 m/min - Index tool rotation speed
PG Pure: 180 rpm
PG Dynamic: 250 rpm
