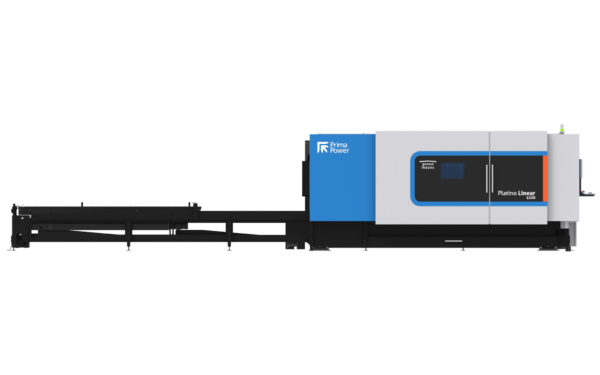

Platino Linear

Platino Linear® is the latest addition to the Prima Power 2D laser product range, resulting from the perfect balance between Prima Power expertise and quality at affordable investment and operating costs.

Platino Linear is an efficient, and easy-to-use laser cutting machine designed for the processing of any material and shape with high cutting quality and great reliability. It is a durable and long-lasting machine that delivers flawless results thanks to its robust and sturdy design.

Its highly dynamic, maintenance-free linear drive increases machine uptime compared to conventional drive systems, resulting in high productivity, especially when processing thin materials.

Available in two sizes, 1530 and 2040, Platino Linear provides the versatility needed to meet diverse production requirements, offering the same efficiency, reliability, and cutting quality across different formats.

The Platino Linear is extremely cost effective with an unbeatable output per m² in the category, best-in-class plug-in efficiency and incredibly sustainable sheet utilization up to 96%.

Its user-friendly interfaces provide straightforward operation and a variety of smart features that enable effortless automation and connectivity.

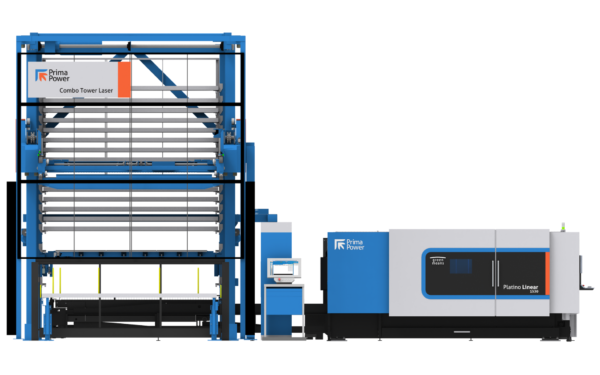

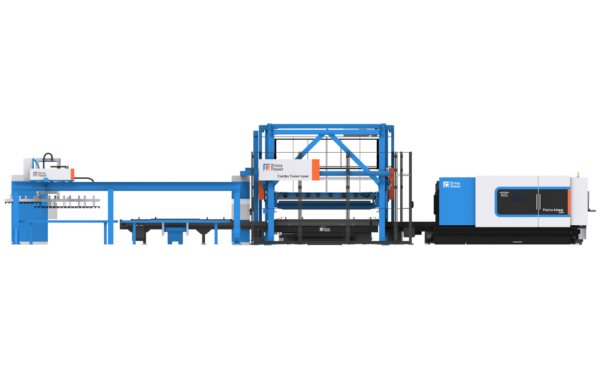

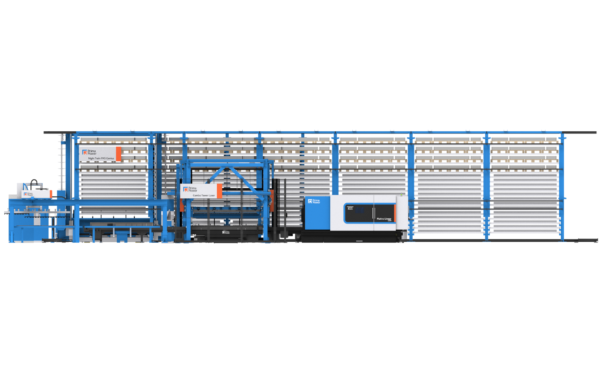

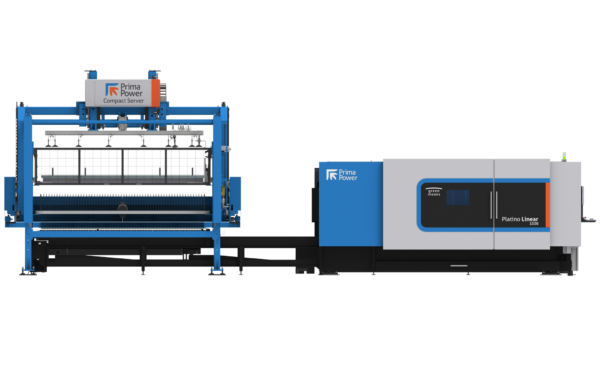

Platino Linear is a modular solution that can be integrated with a wide range of automation modules for loading, unloading, picking, sorting, and stacking sheets and parts. Its modularity allows Platino Linear to evolve with your production by integrating different types of automations.

MACHINE FEATURES

• Synthetic granite frame: unparalleled accessibility to the working area, combined with superior vibration absorption, thermal stability, and weather resistance.
• Aluminum carriage: reduces the weight of moving parts while maintaining ideal rigidity resulting in high accuracy.
• Adaptive laser head: superior cutting quality and outstanding performance on all materials with a single focusing lens that can be adapted to meet different production requirements.
• Protection cabin: highly accessible cabin with full-length side opening for sheet metal loading and front door for easy maintenance.
• Tech suites: dedicated technological suites for optimizing machine performance depending on the application. The ECO-TOUCH Cut and Gas Mixer options allow for dramatic reduction in gas consumption of up to 40%.

TECHNICAL DATA

Working Area
Platino Linear 1530 | X= 3,048 mm; Y= 1,524 mm; Z= 150 mm
Platino Linear 2040 | X= 4,064 mm; Y= 2,032 mm; Z= 150 mm

Axis speed
100 m/min (trajectory 140 m/min)

Position accuracy (Pa) and Repeatibility (Ps)*
0.03 mm

Fiber laser source
4000 W – 6000 W – 8000 W



*according to VDI/DGQ 3441 standards: the precision of the part depends on its type, pre-treatment, and on the application conditions.
