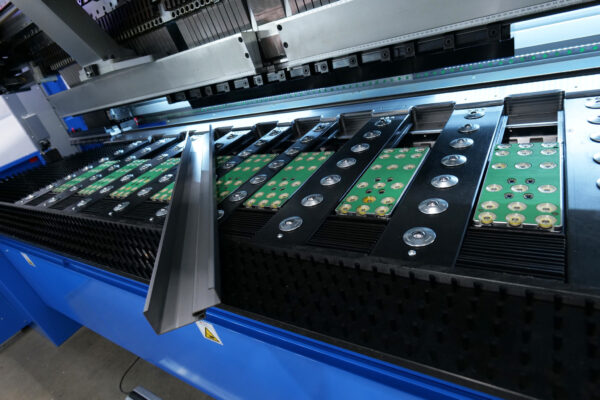

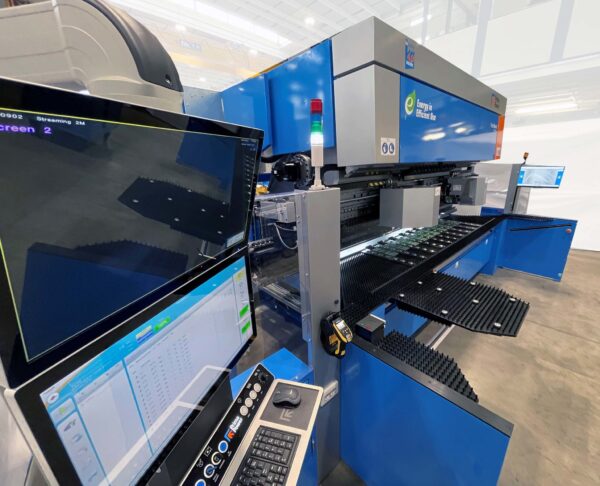

Prima Power’s Fast Bend is an intermediate product between the traditional press brake machine and the automatic panel bender. It allows the automatic creation of multiple bends for each side, including positive / negative inversion, flattened and radius bends; only the loading, rotation and unloading operations are manual. The traditional concept of panel bender manipulators is replaced here with a suction cup feeder to expand the range of bending products. Fast Bend offers a quick and efficient response to an ever-increasing demand for the reduction in the quantity of pieces of the production batch, combining the simplicity of use of a compact model with a limited expense.
Technical Data
|
FBe2220 |
FBe2720 |
FBe3320 |
|
| Maximum bending length |
2,250 mm |
2,750 mm |
3,350 mm |
| Maximum sheet length |
2,850 mm |
3,000 mm |
3,800 mm |
| Maximum sheet width |
1,700 mm |
||
| Maximum bend height |
204 mm |
||
| Maximum re-entering bend |
55 mm |
||
| Bending force |
32t (320kN) |
41t (410kN) |
|
| Clamping force |
52t (510kN) |
90t (890kN) |
100t (980kN) |
| Max. thickness, Steel UTS 410 N/mm2 |
3.0 mm |
3.2 mm |
3.0 mm* 3.2 mm** |
| Max. thickness, Stainless steel UTS 680 N/mm2 |
2.0 mm |
2.2 mm |
2.0 mm* 2.2 mm** |
| Max. thickness, Aluminium UTS 265 N/mm2 |
4.0 mm |
4.0 mm |
3.5 mm* 4.0 mm** |
| Minimum thickness |
0.5 mm |
||
| Average absorbed power |
4 kWh |
5 kWh |
|
The values shown refer to a standard machine. Prima Power reserves the right to change data without notice.
*Full length – **Max. 3,000 mm
