Metal deburring and edge rounding machine – DM1100 C – performs edge rounding and removes sharp edges on both external and internal contours of stainless steel, steel or aluminium parts either cut in laser, shear or punching machine.
This machine works metal parts of different dimensions including products as small as 50x50mm.
DM1100 C – Metal Deburring Machine has a station with double cross belts for the metal deburring and edge rounding, leaving clean, soft and burr-free edges on the complete parts.
TECHNICAL DETAILS
| DM1100 C | |
|---|---|
| Working capacity (mm) | 1100×50 |
| No. Cross belt stations | 1 |
| Cross belt speed (m/s) | 2-8 |
| Feeding speed (m/m) | 0.6-3.2 |
| Cross Belt Motor (kW) | (2x) 3 |
| Feeding motor (kW) | 0.18 |
| Total power (kw) | 6 |
| Consumption (A) | 11 |
| Dust extraction connection per head (Ø mm) | 200 |
| Dimensions (mm) | 2230x1510x2040 |
| Weight (kg) | 1350 |

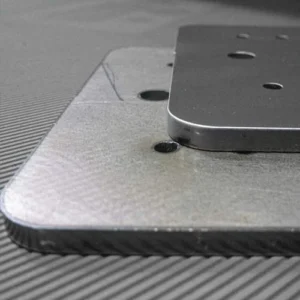

Strong edge rounding
Before and after DM1100 C: high performance on all edges and also on internal holes.

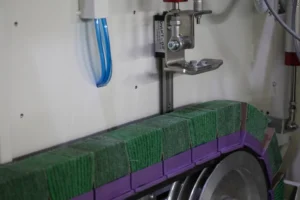

Cross belt technology
Two cross belts mounted with abrasive blocks run in opposite directions, completing edge rounding on the complete area of the part.

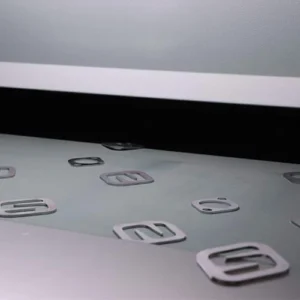

Small parts deburring
Excelent work on small parts down to 50x50mm.

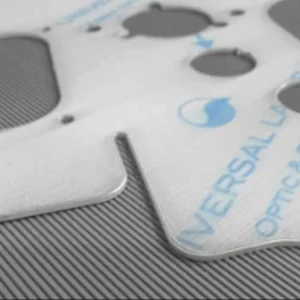

Plastic protection deburring
The light contact with the abrasive belts on the ML Planetary System generates very little heat on the surface of the tube, unlike other more conventional systems.
Before DM1100 C
Part with sharp edges after laser cutting.
After DM1100 C
Sharp edge removal by DM1100 C on stainless steel laser cut part.

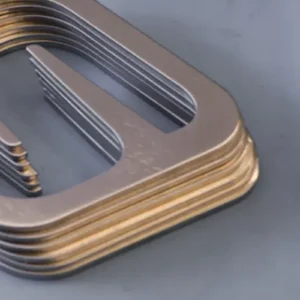

Punched parts deburring
Before and after deburring example of parts cut on punching machine.

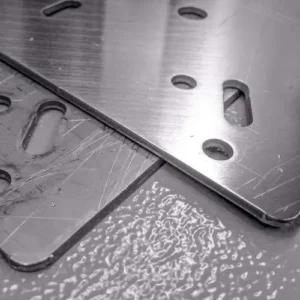

Perfect linear surface finishing
Besides edge rounding the cross belt technology delivers a perfect linear finishing on the complete surface of the part.

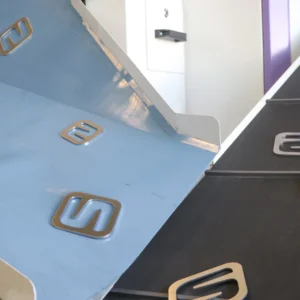

Parts return system
A parts return system brings the parts back to the operator, boosting productivity and keeping workflow smooth and effortless.
