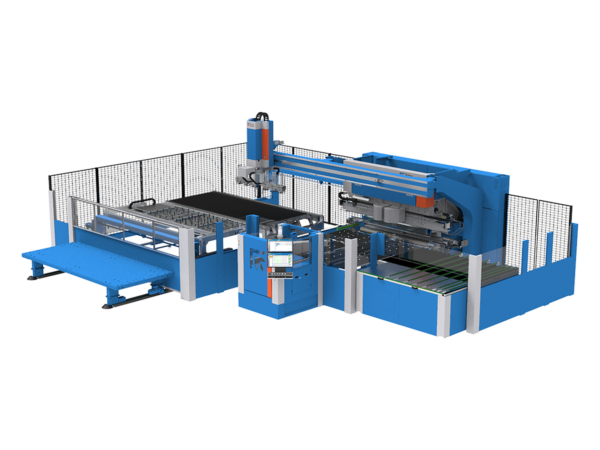

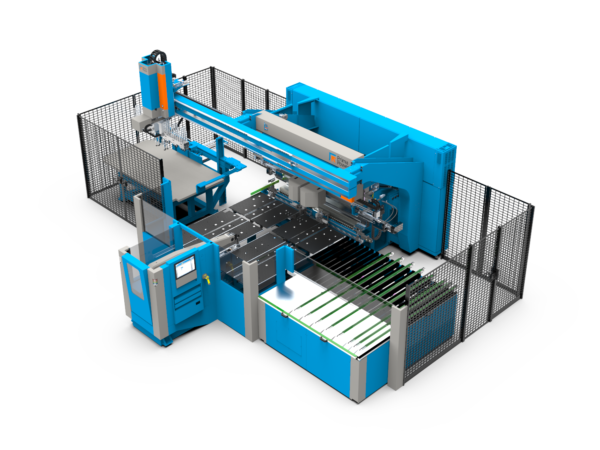

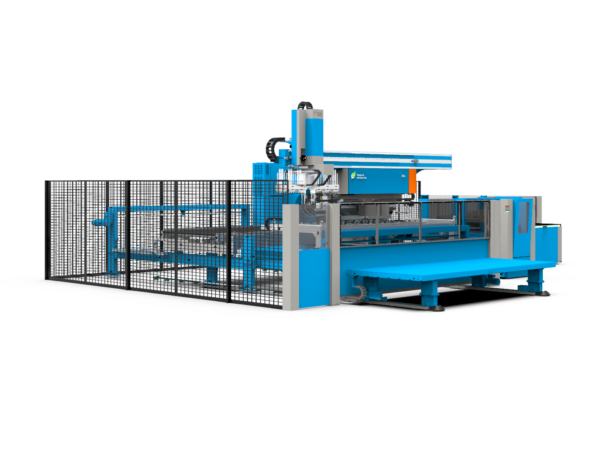

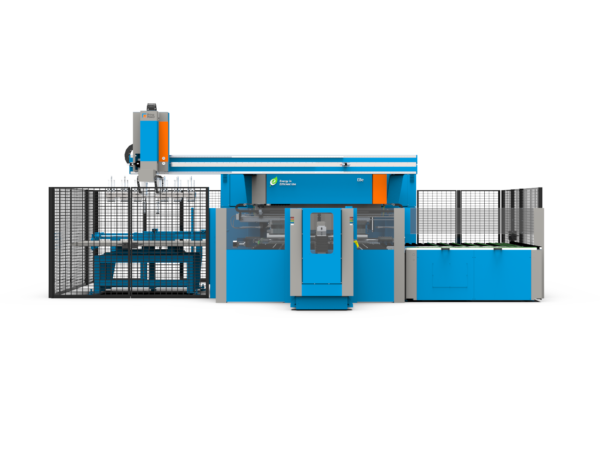

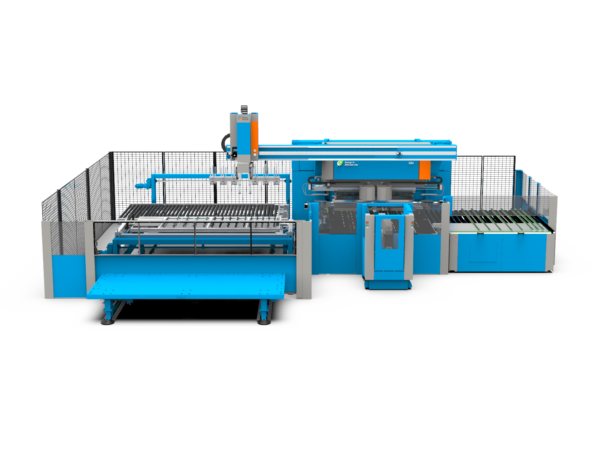

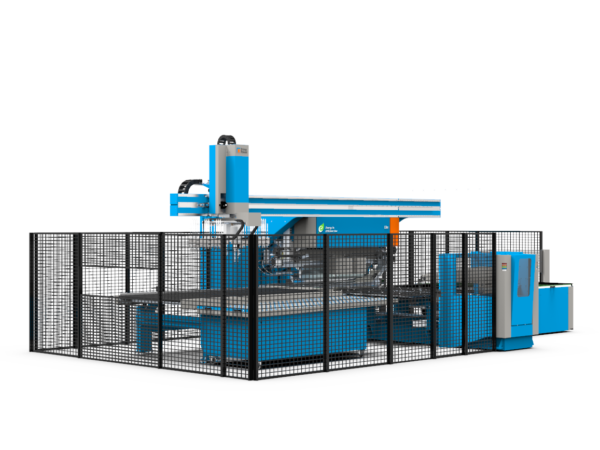

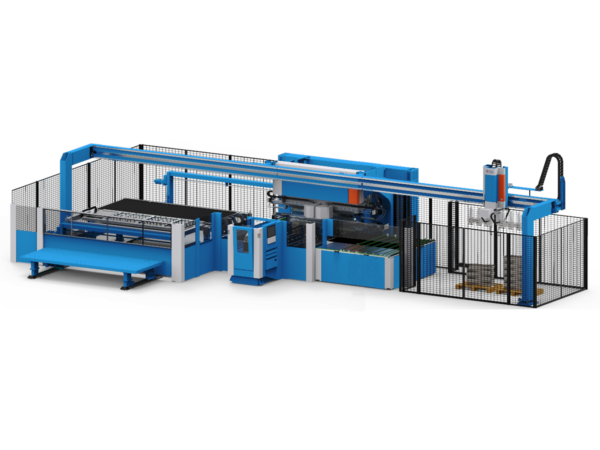

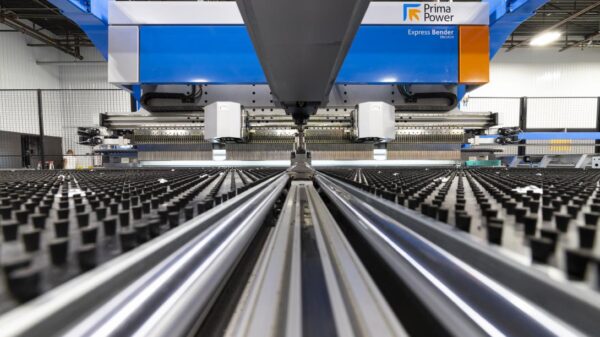

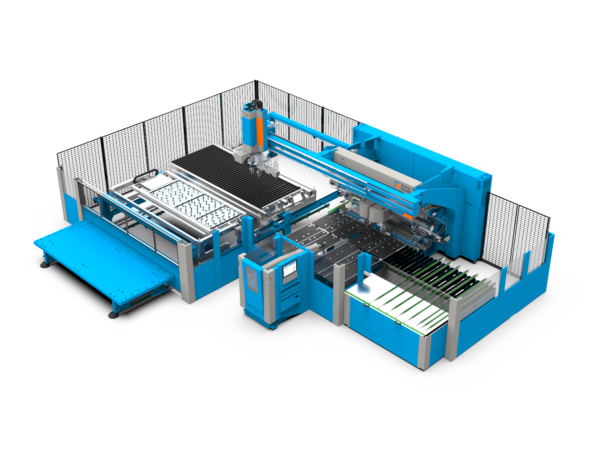

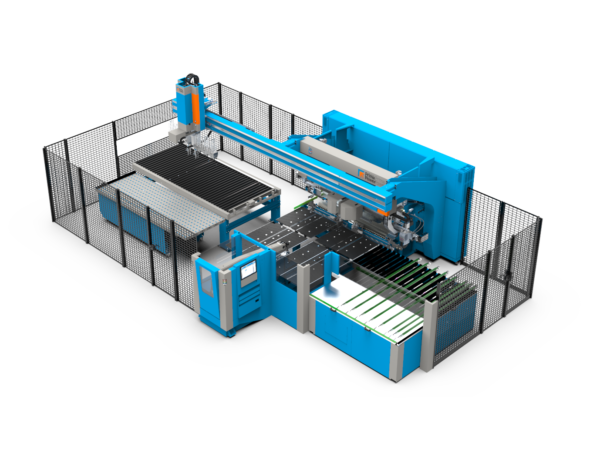

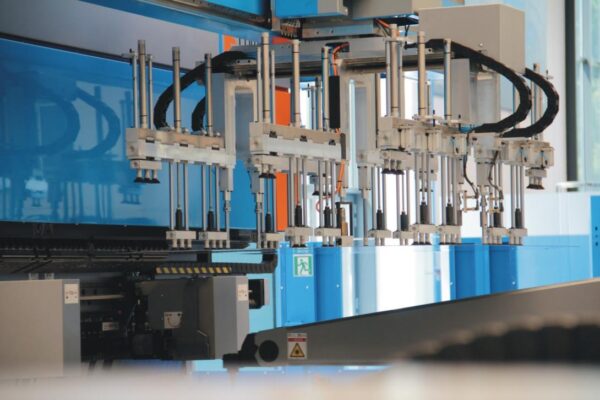

Prima Power’s EBe Express Bender is the servo-electric panel bender which considerably increases the production capacity thanks to the automated loading and unloading process, thus maximising the efficiency of the bending process. In the EBe stand alone version, there is a loading table for loading large quantities of the same part: this configuration is suitable for larger production volumes with limited variability.

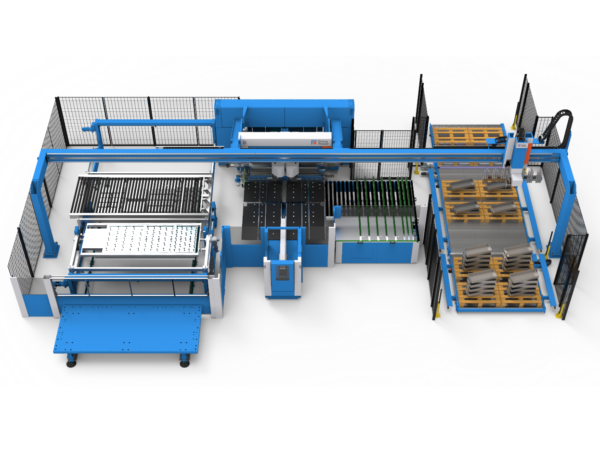

The PCD device is an alternative with greater automation when loading several stacks of different pieces – with an optional turning device – which allows batch or kit production and prepares the panel bender for future connection with other Prima Power machines.
Technical Data
|
EBe2220 EBe2226 |
EBe2720 EBe2726 |
EBe3320 EBe3326 |
EBe3820 EBe3826 |
|
| Maximum bending length |
2,250 mm |
2,750 mm |
3,350 mm |
3,800 mm |
| Maximum sheet length |
2,850 mm |
3,850 mm |
4,000 mm | |
| Maximum sheet width |
1,500 mm |
1,700 mm | ||
| Maximum panel diagonal |
3,000 mm |
3,950 mm |
4,000 mm | |
| Maximum bend height |
204 mm 264 mm |
|||
| Maximum re-entering bend |
55 mm |
|||
| Bending force |
32t(320kN) |
41t(410kN) |
||
| Clamping force |
52t(510kN) |
90t(890kN) |
100t(980kN) |
|
| Max. thickness, Steel UTS 410 N/mm2 |
3.0 mm |
3.2 mm |
3.0 mm* 3.2 mm** |
2.0 mm* 3.2 mm** |
| Max. thickness, Stainless steel UTS 680 N/mm2 |
2.0 mm |
2.2 mm |
2.0 mm* 2.2 mm** |
1.5 mm* 2.2 mm** |
| Max. thickness, Aluminium UTS 265 N/mm2 |
4.0 mm |
4.0 mm |
3.5 mm* 4.0 mm** |
3.0 mm* 4.0 mm** |
| Minimum thickness |
0.5 mm |
|||
| Average absorbed power |
6.5 kWh |
7 kWh | ||
The values shown refer to a standard machine. Prima Power reserves the right to change data without notice.
*Full length – **Max. 3,000 mm
