DM1100 DC EVO deburrs and edge rounds inside and outside contours of thick steel parts mainly cut by plasma or oxyfuel.
It has a large deburring drum for heavy burr removal and a double cross belt head for smooth, clean edges.
Features drum fluctuation to cope with sheet tolerances and a wide magnetic area to deburr small parts.
TECHNICAL DETAILS
| Working capacity (mm) | 1100×120 |
| No. belt stations (D) | 1 |
| No. cross belt stations (C) | 1 |
| Contact drum | Ø435mm 20SH |
| Abrasive dimensions (mm) | 1150×1560 |
| Drum speed (rpm) | 180–650 |
| Cross belt speed (m/s) | 2–8 |
| Feeding speed (m/min) | 0.5–4.0 |
| Total power (kW) | 19 |
| Weight (kg) | 4230 |

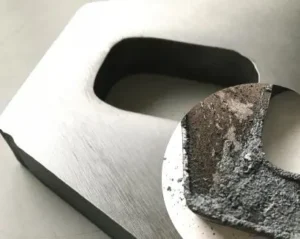

Deburring and rounding edges
Combines a powerful contact drum for heavy burr deburring with two counter-rotating cross belts for edge rounding.

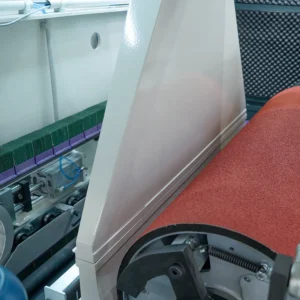

Heavy burrs deburring
Large diameter drum with extra-soft rubber (20 SH), ideal for thick and heavy steel parts.
Floating system
Vertical fluctuation handles different material tolerances with adjustable pressure and horizontal oscillation
improves abrasive lifetime.

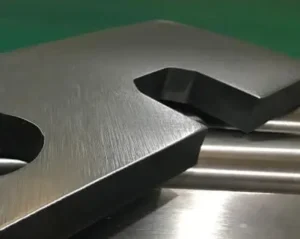

Smooth edges
Two cross belts running in opposite directions ensure complete edge rounding over the entire part.

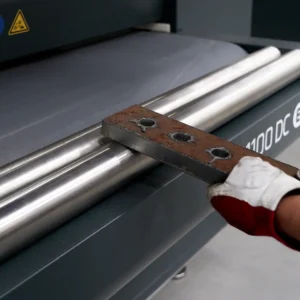

Small parts deburring
600mm magnetic conveyor keeps small steel parts fixed even under high deburring pressure.

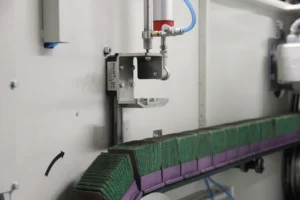

Automatic abrasive wear compensation
Abrasive wear is measured automatically and compensated via PLC to maintain constant rounding pressure.

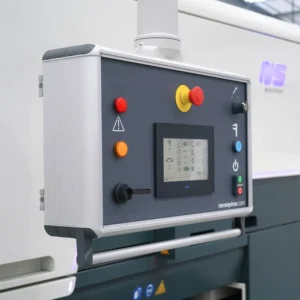

Control panel
Software allows station selection, speed control, pressure adjustment, floating drum settings, and fault diagnostics.
