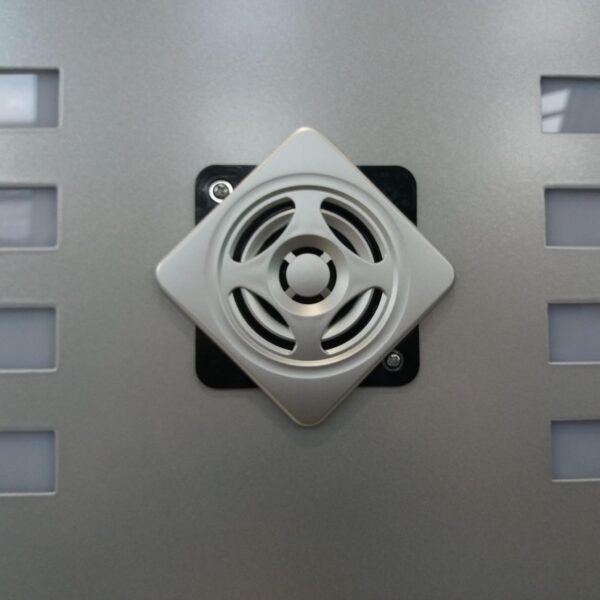

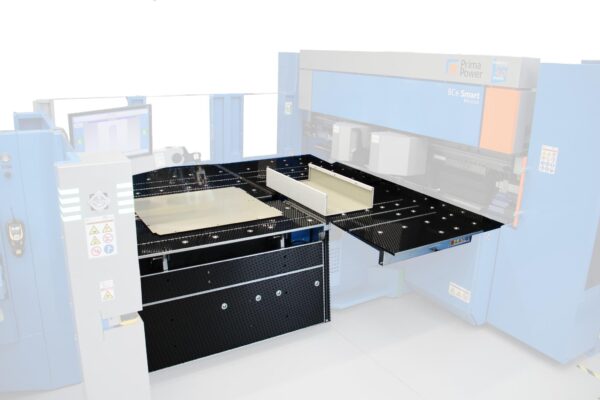

The BCe Smart bending cell is a revolutionary bending solution thanks to the “safety integrated” concept that allows the operator to focus only on value-added operations, aided by visual devices and sound signals. Its compact layout and combined loading and unloading sequence guarantee high productivity, constituting a very important investment for anyone looking for a flexible and semi-automatic panel bender.
Technical Data
|
BCe Smart 2220 |
|
| Maximum bending length |
2,250 mm |
| Maximum sheet length |
2,850 mm |
| Maximum sheet width |
1,500 mm |
| Maximum panel diagonal |
3,000 mm |
| Maximum bend height |
204 mm |
| Maximum re-entering bend |
55 mm |
| Bending force |
32 t (320 kN) |
| Clamping force |
52 t (510 kN) |
| Max. thickness, Steel UTS 410 N/mm2 |
2.5 mm * 3.0 mm ** |
| Max. thickness, Stainless steel UTS 680 N/mm2 |
1.8 mm * 2.0 mm ** |
| Max. thickness, Aluminium UTS 265 N/mm2 |
3.5 mm * 4.0 mm ** |
| Minimum thickness |
0.5 mm |
| Average absorbed power |
4 kWh |
The values shown refer to a standard machine. Prima Power reserves the right to change data without notice.
*Full length – **Max. 1,900 mm
